Renault Master

tippers and flatbeds

up to 43˚

of tipping in tipper version

up to 1812 kg

of aluminium tipper payload capacity*

up to 1465 kg

of aluminium tipper payload capacity**

up to 15

available versions

*4-tonne E-Tech electric version L2H1 version

**3.5 tonne diesel L2H1 version

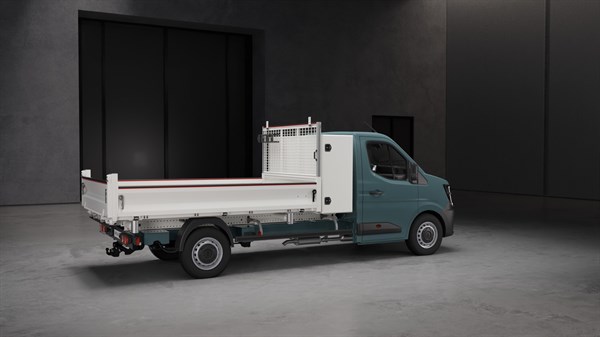

drop-side flatbed

steel or aluminium tipper

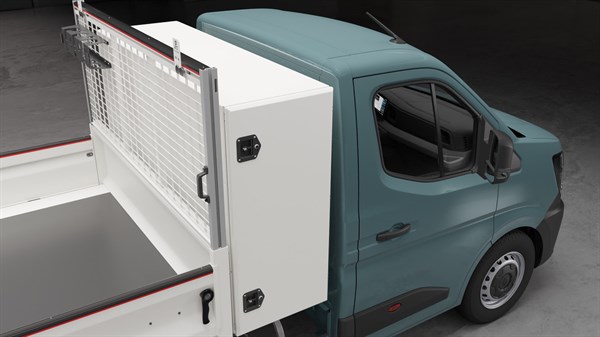

storage volume

of 8 to 12 depending on version - tipper and flatbed - Renault Master

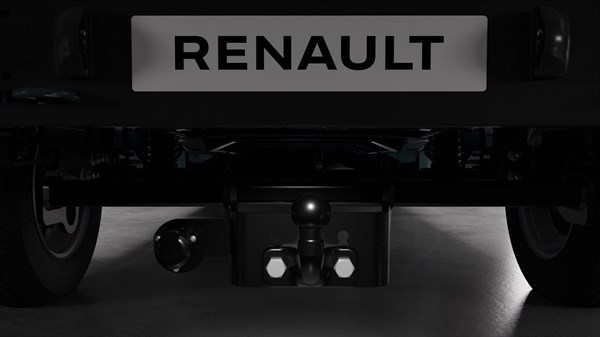

up to 12 lashing hooks

download the Renault Master brochure

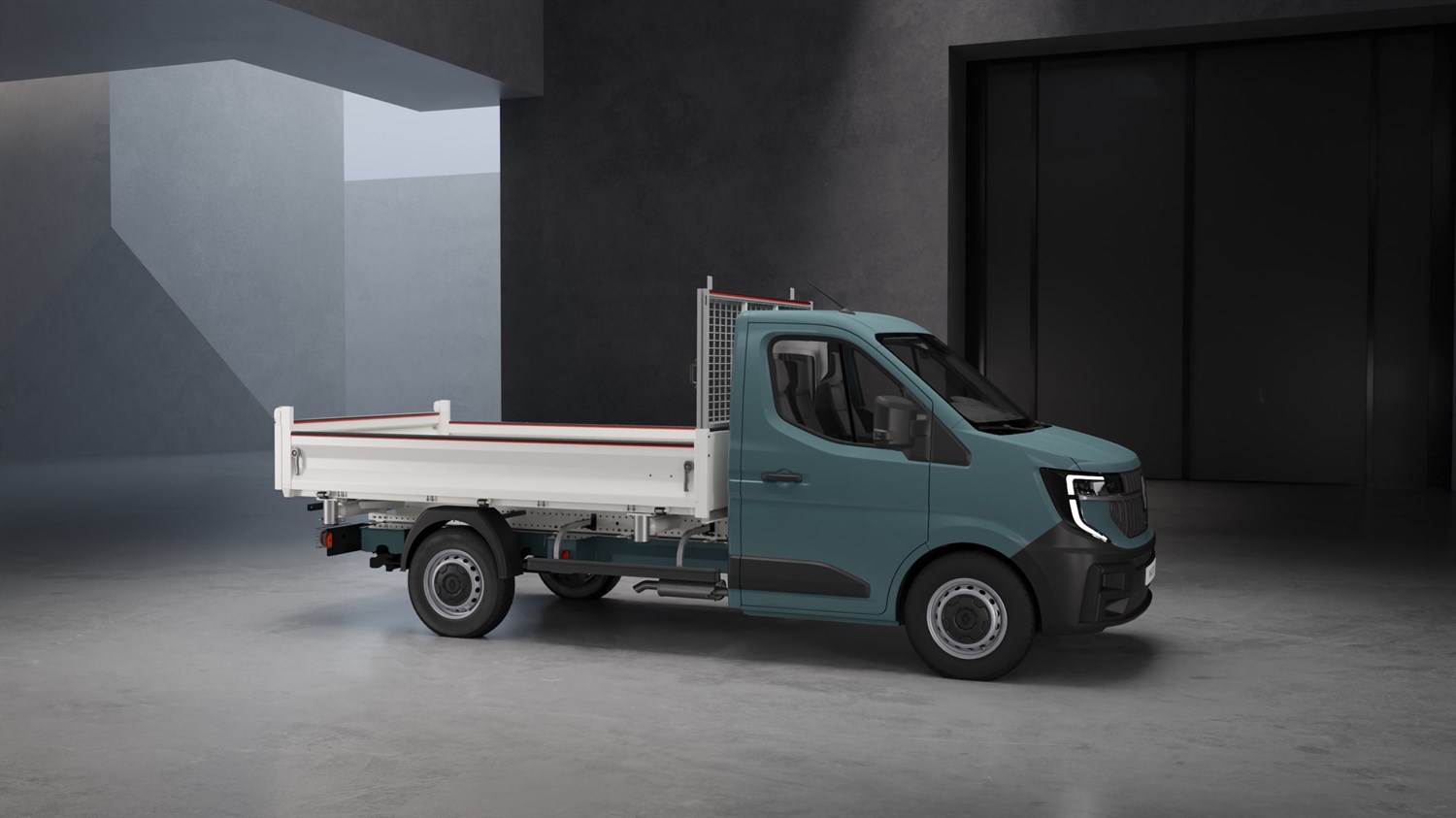

Renault Master tipper and flatbed is converted by Renault

Choose simplicity with commercial vehicles converted by Renault.

Renault Master tipper and flatbed -converted by Renault

Renault quality

conversion developed by our experts

optimised lead times

conversion carried out in our factories

peace of mind

Renault warranty on the chassis and conversion

features

Assembled at Renault’s manufacturing plant in Batilly, France, All-New Renault Master tipper or flatbed benefits from Renault’s logistical and industrial expertise.

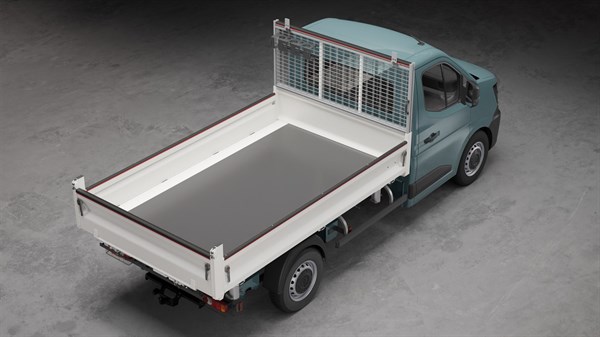

wide range

a comprehensive range with aluminium or steel finishes and one-way or three-way tipper versions

large capacity

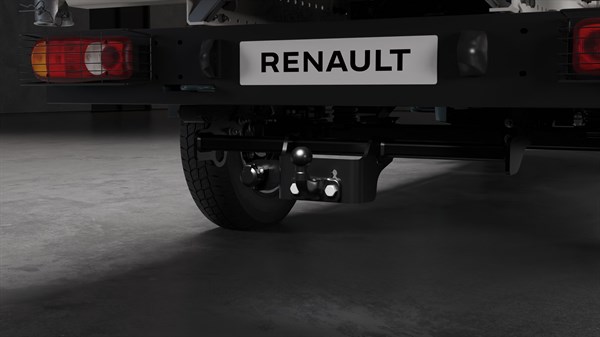

payload capacity up to 1,812 kg* and reinforced towing system with combined hook for towing additional loads

designed for professionals

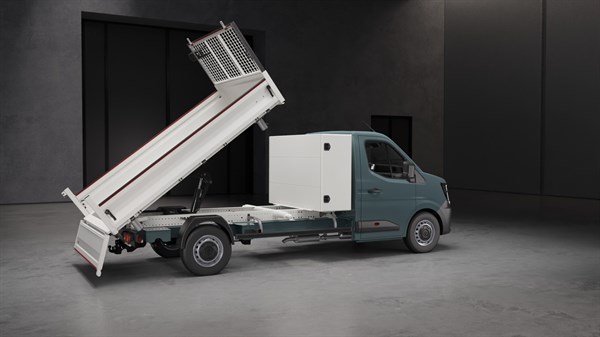

in tipper version: 8 lashing points and automatic rear door opening during tipping

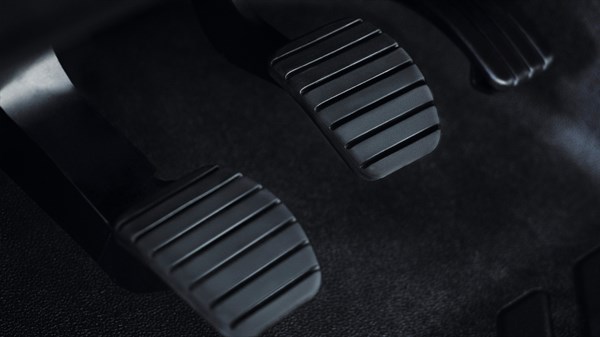

driving comfort

shorter wheelbase and optimised steering angle to make manoeuvring easier in any environment

*4t E-Tech electric L2H1 aluminium flatbed version

download the Renault Master brochure

dimensions

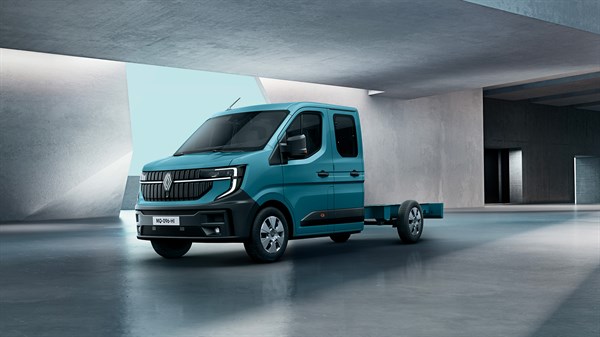

All-New Renault Master tipper or drop-side flatbed is available on a chassis cab or double cab base in 3 lengths.

steel tippers

	L2H1 single cab	L3H1 single cab with toolbox	L3H1 single cab with toolbox RWD with dual rear wheels	L3H1 twin cab	L3H1 twin cab RWD with dual rear wheels
diesel payload capacity min/max (kg)	815 / 1056*	844 / 1166*	580 / 782*	736 / 977**	homologation in progress
E-Tech payload capacity min/max (kg)	homologation in progress	homologation in progress	not available	not available	not available
overall length (mm)	5915	6545	6545	6717	6717
wheelbase (mm)	3585	4215	4215	4215	4215
overall width (mm)	2087	2087	2087	2087	2087
overall width with wing mirrors (mm)	2466	2466	2466	2466	2466
overall height with ladder holder (mm)	2277	2277	2277	2362	2359
wheel track front/rear (mm)	1770 / 1730	1770 / 1730	1770 / 1849	1770 / 1730	1770 / 1849
front-end overhang (mm)	970	970	970	970	970
rear overhang (mm)	1360	1360	1360	1532	1532
loading length tipper (mm)	3200	3200	3200	3200	3200
tipper width (mm)	2000	2000	2000	2000	2000
tipper height (mm)	350	350	350	350	350

* 2 seat version 3.5T

** 6 seat version 3.5T

aluminum tippers

	L2H1 single cab	L3H1 single cab with toolbox	L3H1 single cab with toolbox RWD with dual rear wheels	L3H1 twin cab	L3H1 twin cab RWD with dual rear wheels
diesel payload capacity min/max (kg)	1294 / 1493*	999 / 1205*	765 / 930*	940 / 1145**	708 / 871***
E-Tech payload capacity min/max (kg)	homologation in progress	homologation in progress	not available	not available	not available
overall length (mm)	5999	6657	6657	6816	6816
wheelbase (mm)	3585	4215	4215	4215	4215
overall width (mm)	2099	2099	2099	2099	2099
overall width with wing mirrors (mm)	2466	2466	2466	2466	2466
overall height with ladder holder (mm)	2247	2247	2244	2332	2329
wheel track front/rear (mm)	1770 / 1730	1770 / 1730	1770 / 1849	1770 / 1730	1770 / 1849
front-end overhang (mm)	970	970	970	970	970
rear overhang (mm)	1472	1472	1472	1661	1661
loading length tipper (mm)	3260	3260	3260	3260	3260
tipper width (mm)	2000	2000	2000	2000	2000
tipper height (mm)	400	400	400	400	400

* 2 seat version 3.5T

** 6 seat version 3.5T

*** 5 seat version 3.5T

steel flatbeds

	L2H1 single cab	L3H1 single cab	L3H1 single cab RWD with dual rear wheels	L4H1 single cab RWD with dual rear wheels	L3H1 twin cab	L3H1 twin cab RWD with dual rear wheels	L4H1 twin cab RWD with dual rear wheels
diesel payload capacity min/max (kg)	1371 / 1626*	1164 / 1439*	980 / 1138*	877 / 1035*	997 / 1196**	793 / 950***	781 / 937***
E-Tech payload capacity min/max (kg)	1053 / 1283*	835 / 1019*	not available	not available	not available	not available	not available
overall length (mm)	6348	7293	7293	7148	7293	7293	7271
wheelbase (mm)	3585	4215	4215	4215	4215	4215	4215
overall width (mm)	2081	2081	2081	2081	2081	2081	2081
overall height with ladder holder (mm)	2395	2395	2395	2395	2395	2395	2395
wheel track front/rear (mm)	1770 / 1730	1770 / 1730	1770 / 1849	1770 / 1849	1770 / 1730	1770 / 1849	1770 / 1849
front-end overhang (mm)	970	970	970	970	970	970	970
rear overhang (mm)	1793	2108	2108	1963	2018	2108	2086
flatbed lenght (mm)	3200	3800	3800	4500	3200	3200	3800
flatbed width (mm)	2085	2085	2085	2085	2085	2085	2085
flatbed height (mm)	350	350	350	350	350	350	350

* 2 seat version 3.5T

** 6 seat version 3.5T

*** 5 seat version 3.5T

aluminum flatbeds

	L2H1 single cabe	L3H1 single cab	L3H1 single cab RWD with dual rear wheels	L3H1 twin cab	L3H1 twin cab RWD with dual rear wheels	L4H1 twin cab RWD with dual rear wheels
diesel payload capacity min/max (kg)	1443 / 1636*	1250 / 1450*	1044 / 1203*	1062 / 1260**	858 / 1014***	845 / 1002***
E-Tech payload capacity min/max (kg)	1064 / 1240*	901 / 1083*	not available	not available	not available	not available
overall length (mm)	5980	6785	6785	6725	6725	7355
wheelbase (mm)	3585	4215	4215	4215	4215	4215
overall width (mm)	2081	2081	2081	2081	2081	2081
overall height with ladder holder (mm)	2343	2343	2343	2343	2343	2343
wheel track front/rear (mm)	1770 / 1730	1770 / 1730	1770 / 1849	1770 / 1730	1770 / 1730	1770 / 1849
front-end overhang (mm)	970	970	970	970	970	970
rear overhang (mm)	1793	1264	2108	1540	1540	2169
flatbed lenght (mm)	3274	3774	3774	3274	3274	3774
flatbed width (mm)	2085	2085	2085	2085	2085	2085
flatbed height (mm)	400	400	400	400	400	400

* 2 seat version 3.5T

** 6 seat version 3.5T

*** 5 seat version 3.5T

customisation

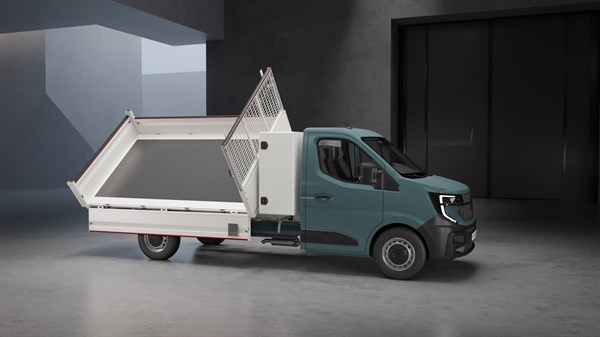

Customise All-New Renault Master tipper or flatbed by choosing the powertrain, design elements, equipment and accessories that suit you.

view the accessoires catalogue

powertrains

All-New Renault Master tipper or flatbed offers one of the most comprehensive ranges of powertrains for a utility vehicle, with 4 power levels with the diesel engine and two batteries on its E-Tech 100% electric version.

choose your powertrain E-Tech 100% electric

E-Tech electric
diesel

E-Tech electric

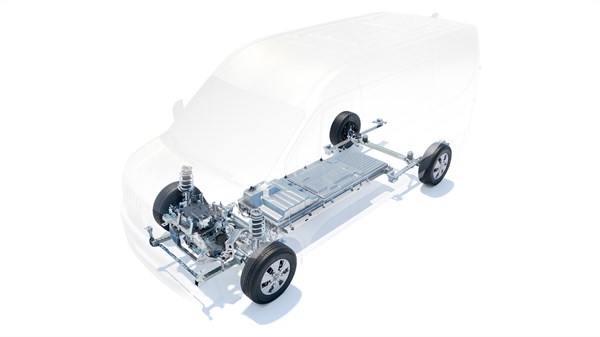

E-Tech electric powertrain

With no CO₂ emissions, opt for silent, responsive and flexible electric driving. Available soon.

diesel

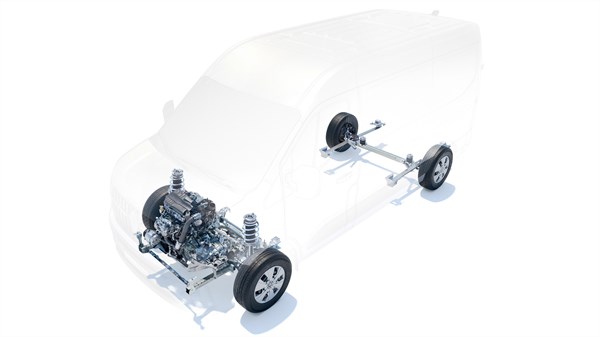

diesel engine

Offering 4 performance levels, the diesel version has a new 9-speed automatic gearbox* with lower fuel consumption and CO₂ emissions.

*coming soon

find out more about the E-Tech electric powertrain

find out more about the diesel engine

the best of All-New Renault Master

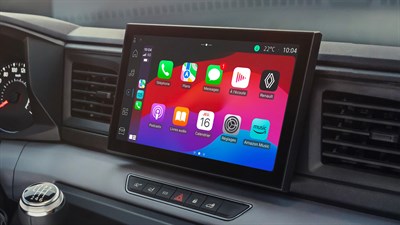

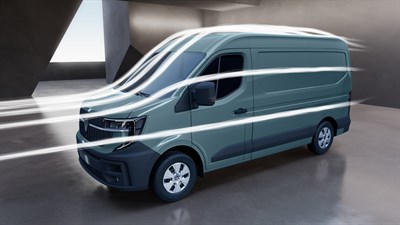

Available in different dimensions and powertrains, All-New Renault Master tipper and flatbed offers aerodynamics, power, volume and connectivity with openR link and Google built-in*. *.

*Google, Google Play, Google Maps, Waze and other trademarks are trademarks of Google LLC, available as an option depending on version.
